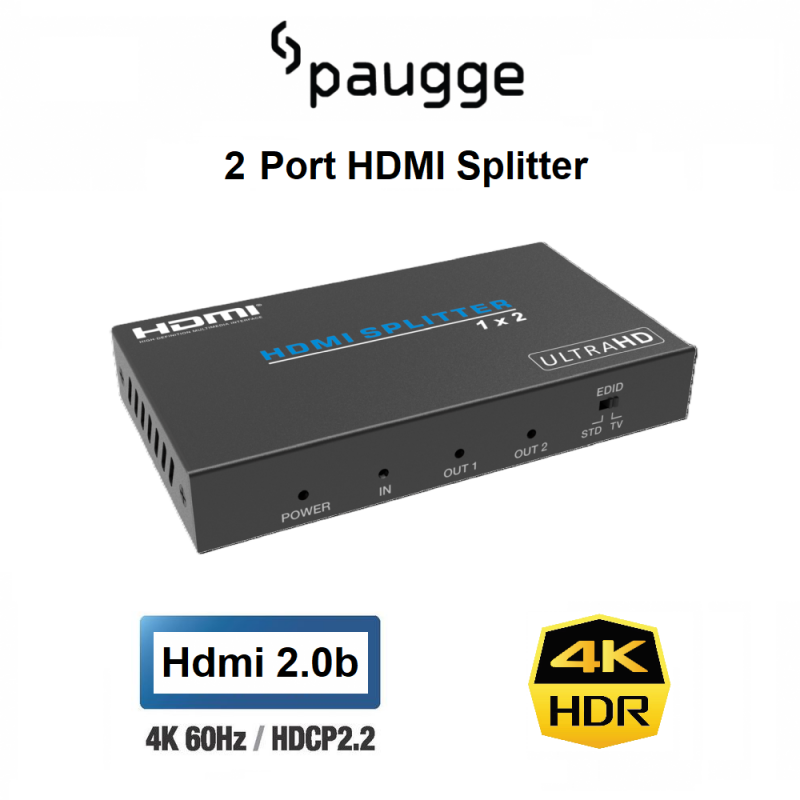

Paugge 2 Port HDMI Splitter - (Hdmi 2.0b 4K60Hz HDR)
1.767,31₺
30,00$ +KDV
Vergiler Hariç: 1.472,76₺
- Ürün Kodu: ENT-SP20B2
Model : ENT-SP20B2
Introduction
1×2 HDMI 18Gbps Splitter is an advanced solution for splitting HDMI content into 2 HDMI outputs synchronously. It provides high-performance audio and video up to 4K2K@60Hz (4:4:4) and is capable of receiving, retiring, and transmitting up to 18Gbps of bandwidth with no data loss.
Features
- HDMI 2.0b, HDCP 2.2 compliant
- Up to 4K2K@60Hz with 24bit RGB/YCbCr 4:4:4
- VESA format up to QSXGA@60Hz
- Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
- Built-in equalizer, retiring, and driver
- Smart EDID, STD(1080p) mode, and TV(copy OUT1) mode Compact design for an easy and flexible installation
Package Contents
- 1× 1×2 HDMI 18Gbps Splitter
- 1× 5V/1A Power Adapter
- 1× User Manual
Specifications
Technical | |
| Video Bandwidth | 600MHz/18Gbps |
| Input Port | 1×HDMI Type A (19-pin female) |
| Output Ports | 2×HDMI Type A (19-pin female） |
| Video Resolution | 4K2K@24/25/30/60Hz |
| ESD Protection | Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Mechanical | |
| Chassis Material | Metal |
| Silkscreen Color | Black |
| Power Consumption | 2W |
| Weight | 165g |
| Power Supply | Input: AC100 – 240V 50/60Hz, Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
| Dimensions | 56 mm(W)×100 mm(D)×16mm(H) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |

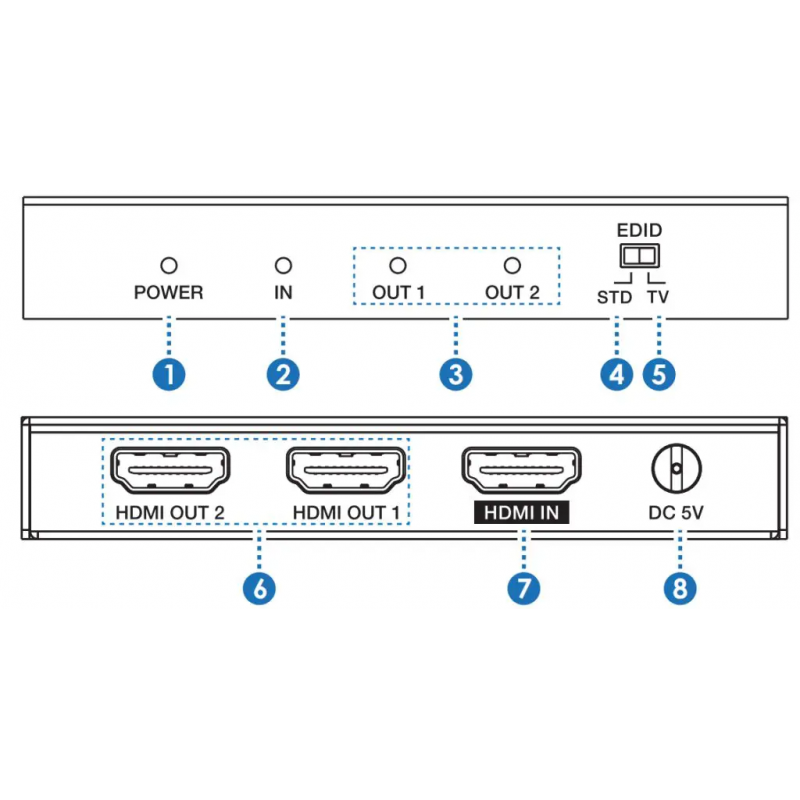

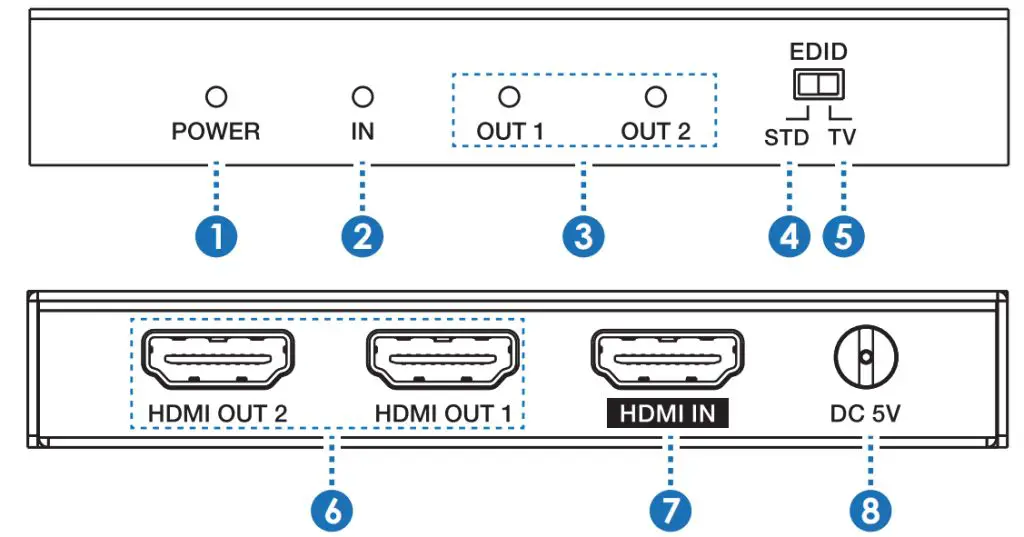

Operation Controls and Functions
| Number | Name | Function description |
| 1 | Power LED | This blue LED illuminates when the device is connected with the power supply. |
| 2 | IN LED | This blue LED illuminates when the Source is connected to the device. |
| 3 | OUT LED | These blue LEDs will light up to indicate which HDMI outputs are connected to an active TV/ display/monitor. |
| 4 | EDID STD | When in ‘STD’ mode, the unit will use its own built-in EDID settings. In this mode, the video output will be set to 1080p@60Hz and the audio output at LPCM 2CH Stereo. |
| 5 | EDID TV | When in ‘TV’ mode, the unit will read the EDID settings of the display device connected to HDMI OUT 1. |
| 6 | HDMI OUT 1~2 | Connect each of the HDMI outputs to an HDMI display for simultaneous HDMI distribution, or cascade the output to another splitter to extend the operating distance. |
| 7 | HDMI IN | Connect the input port to the HDMI output of your source device such as a DVD player or set-top box with an HDMI cable. |
| 8 | DC 5V | Plug the 5V DC power supply into the unit and connected the adaptor to an AC outlet. |

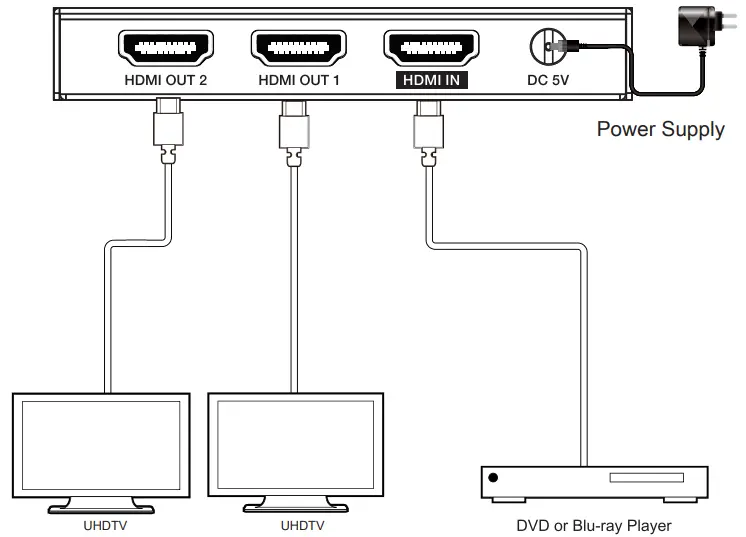

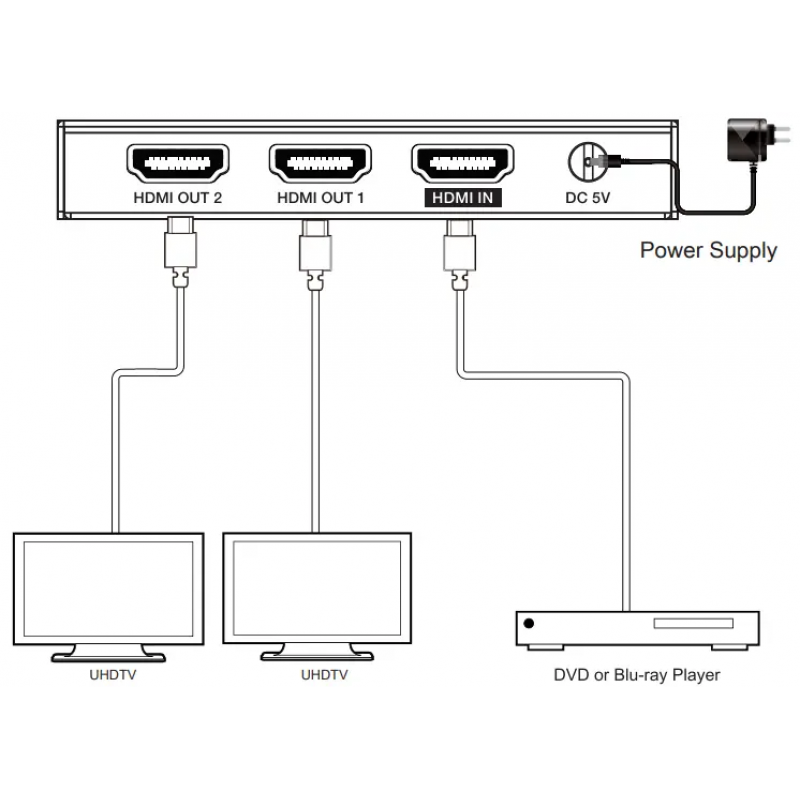

Application Example
